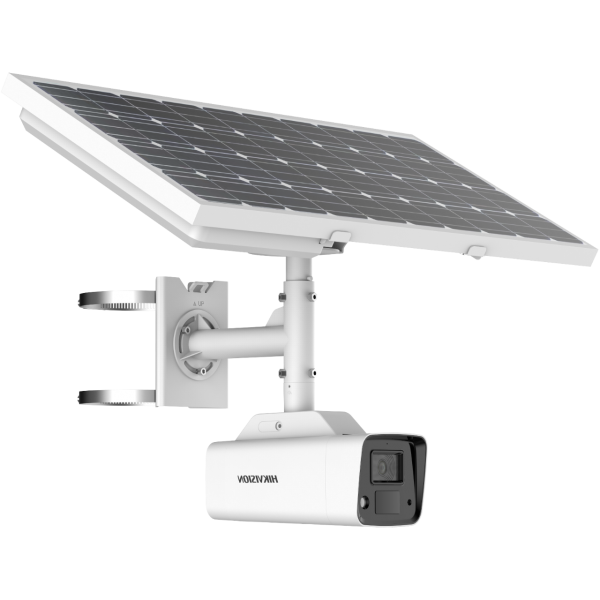

Camera IP Năng Lượng Mặt Trời 4G, 4 Megapixel. H265, IP67
4MP ColorVu Solar-powered Security Camera
Hình ảnh chất lượng cao với độ phân giải 4 MP
Độc lập với bảng điều khiển năng lượng mặt trời và pin tích hợp
24/7 hình ảnh đầy màu sắc
Công nghệ nén H.265 + hiệu quả
Cung cấp bảo mật thời gian thực thông qua âm thanh hai chiều tích hợp
Chống nước và bụi (IP67)
Ổn định chống lại bão cấp 12
Hỗ trợ giao tiếp 4G (LTE-TDD / LTE-FDD / TD-SCDMA / EVDO)
Giải pháp tương thích với nhưng vị trí khó thi công hệ thống điện và dây dẫn,điều kiện cung cấp internet khó như Vùng miền núi,vùng khai thác mỏ,bến cảng,biển…
Thông số kỹ thuật
Image Sensor
1/1.8″ Progressive Scan CMOS
Max. Resolution
2688 × 1520
Min. Illumination
Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light
Shutter Time
1/3 s to 1/100,000 s
Angle Adjustment
Solar Cover: Pan: 0° to 358°, tilt: -40° to 40°
Camera: Pan: 0° to 360°，tilt: -60° to 0°Lens
Lens Type
Fixed focal lens, 4 and 6 mm optional
Aperture
F1.0
Focal Length & FOV
4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115°6 mm, horizontal FOV 58°, vertical FOV 31°, diagonal FOV 69°
Lens Mount
M16
DORI
DORI
4mm, D: 77 m, O: 30 m, R: 15 m, I: 8 m
6mm, D: 116 m, O: 46 m, R: 23 m, I: 12 m
Illuminator
Supplement Light Type
White Light
Supplement Light Range
Performance mode: up to 30 m
Proactive mode: up to 10 m
Smart Supplement Light
Yes
Video
Main Stream
50 Hz: 12.5 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 12.5 fps (640 × 480, 640 × 360)
60 Hz: 15 fps (640 × 480, 640 × 360)
Video Compression
Main stream: H.265/ H.264
Sub-stream: H.265/H.264/MJPEG
H.264+: Performance mode: main stream supports
H.265+: Performance mode: main stream supports
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR/VBR
Scalable Video Coding (SVC)
H.265 and H.264 support
Region Of Interest (ROI)
1 fixed region for main stream
Audio Sampling Rate
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering
Yes
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
Network
Security
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface, ISAPI, SDK, ISUP
Protocols
TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS, SNMP, HTTPS, 802.1X
User/Host
Up to 32 users. 3 user levels: administrator, operator and user
Network Storage
Auto network replenishment (ANR)
Client
iVMS-4200, Hik-Connect, Hik-Central
Proactive mode: Hik-Connect
Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Mobile Communication
Frequency
LTE-TDD: Band 38/40/41;
LTE-FDD: Band 1/3/5/7/8/20/28;
WCDMA: Band 1/5/8;
GSM: band 3/5/8
Standard
LTE-TDD, LTE-FDD, WCDMA, GSM
SNR ≥ 52 dB
Wide Dynamic Range (WDR)
120 dB
Day/Night Switch
Day, Night, Auto, Schedule
Image Enhancement
BLC, HLC, 3D DNR
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
PIR
PIR Angle
Horizontal: 100°, vertical: 80°
PIR Range
Up to 15 m
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Built-in 64 GB eMMC storage (50 GB avaible for recording)
Built-In Microphone
Yes
Built-In Speaker
Yes
Reset Key
Yes
Event
Basic Event
Motion detection, video tampering alarm, exception, PIR
Linkage
Upload to memory card, notify surveillance center, audible warning, trigger recording, trigger capture, send email
General
Power
Power Consumption and Current:
Typical power scenarios: 1.85 W (4 G working)
Standby scenarios: 40 mW
Max. power consumption: 7.2 W
Power Supply:
12 VDC ± 25%
*For debugging only
40 W(deviation: ± 2 W) Solar panels
Power Interface:
Power supply interface: Φ5.5 mm coaxial power plug
Extened solar panel: four-core aviation connector
Material
ADC12
Storage Conditions
-20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)
Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
Heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Startup And Operating Conditions
-20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)
Dimension
614.8 mm × 390.5 mm × 760 mm (24.2″ × 15.4″ × 29.9″)
Package Dimension
837 mm × 267 mm × 445 mm (33″ × 10.5″ × 17.5″)
Pre-install plate: approx. 1080 g (2.4 lb.)
Bullet camera + bracket + solar panel: approx. 8540 g (18.8 lb.)
With Package Weight
approx. 11860 g (26.1 lb.)
Battery
Battery Type
Ternary lithium
Capacity
23.2 Ah
Max. Charging Voltage
8.4 V
Operating Temperature
Charge: -20 °C to 45 °C (-4 °F to 113 °F). Charging Condition: -20 °C to 45 °C (-4 °F to 113 °F) (deviation: ± 5 °C)
Discharge: -20 °C to 55 °C (-4 °F to 131 °F). Discharging Condition: -20 °C to 55 °C (-4 °F to 131 °F) (deviation: ± 5 °C)
Battery Voltage
5.5 V to 8.4 V
Cycle Lifetime
Performance mode: 2.5 day
Proactive mode: 4.5 day
Standby mode: 24 days
Battery Life
More than 500 cycles
Approval
RF
FCC ID (FCC Part 15.247(BT or 2.4G));
CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G);
EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G));
EMC
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015)
Safety
CB (IEC 62368-1:2014+A11);
CE-LVD (EN 62368-1:2014/A11:2017);
LOA (IEC/EN 60950-1)
Environment
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
Protection
IP67 (IEC 60529-2013)
Xuất xứ: Hikvision / Trung Quốc
Bảo hành: 12 tháng
Giá: Liên hệ
